CUCM Inventory
Requirement
Obtain details of all the Physical phones and ATA devices registered to the CUCM Cluster
References
- Cisco References
- This Sites references
Solution Steps
- Gather a list of the SEP and ATA devices configured on the cluster using the AXL API
- Using the Device name gathered via the AXL API, in batches of 1000 request via the RIS Port API details of the registered devices
- A maximum of 15 RIS requests per minute is allowed (max of 1 request every 4 seconds) - if higher a SOAP error can occur.
- The RIS Port API returns a lot of information. The typical information we would need is:
Specific Information
The Specific Information information we want to gather from the RIS API is detailed below:
| Required Field | RIS Field | Note | |
|---|---|---|---|
| Serial number | Name | This is not the actually serial number of the phone - but it is a unique ID for the Phone | |
| Model | Model ID | Note - you need a further lookup table to determine the actual model Name - this table can be found here | |
| Registered | Status | Where Status value is 'Registered' | |
| IP address | IP | This is the IP address of the phone. Note if the device is remote, this can be the IP address of the expressways - and should be ignored. |
Authentication
- Access to the AXL API (Standard TabSync User)
- The RIS port API needs Standard CCM Service Monitoring

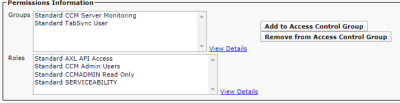

Here are the steps to create a Access Group for a API user
- Create an Application User and assign the following Access Groups
- Standard TabSync User
- Standard CCM Service Monitoring
AXL Query
- AXL Query URL: https://my-cucm-hostname:8443/axl/
AXL Query for Hardware Devices (SEP and ATA devices)
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="http://www.cisco.com/AXL/API/11.5"> <soapenv:Header/> <soapenv:Body> <ns:executeSQLQuery sequence="?"> <sql> SELECT device.name, device.description, device.specialloadinformation, typemodel.name as model, typedeviceprotocol.name as protocol FROM device, typemodel, typeclass, typedeviceprotocol WHERE device.tkmodel = typemodel.enum AND device.tkclass = typeclass.enum AND typeclass.name = 'Phone' AND device.tkdeviceprotocol = typedeviceprotocol.enum AND (device.name like 'SEP%' OR device.name like 'ATA%') </sql> </ns:executeSQLQuery> </soapenv:Body> </soapenv:Envelope>
AXL Query for Jabber Softphones
- This query could be combined into the above query.
- Note how the SQL query WHERE filter uses 'lower' to remove case sensitivity. This is critical as the Device Name could be csfUsername or CSFusername
- Another approach would be to filter by phone type - but this approach would be easier to add to a single query
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="http://www.cisco.com/AXL/API/11.5"> <soapenv:Header/> <soapenv:Body> <ns:executeSQLQuery sequence="?"> <sql> SELECT device.name, device.description, device.specialloadinformation, typemodel.name as model, typedeviceprotocol.name as protocol FROM device, typemodel, typeclass, typedeviceprotocol WHERE device.tkmodel = typemodel.enum AND device.tkclass = typeclass.enum AND typeclass.name = 'Phone' AND device.tkdeviceprotocol = typedeviceprotocol.enum AND (lower(device.name) like 'csf%' OR lower(device.name) like 'tct%' OR lower(device.name) like 'tab%' OR lower(device.name) like 'bot%' ) </sql> </ns:executeSQLQuery> </soapenv:Body> </soapenv:Envelope>
AXL Query for Hardware and Software Phones
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="http://www.cisco.com/AXL/API/11.5"> <soapenv:Header/> <soapenv:Body> <ns:executeSQLQuery sequence="?"> <sql> SELECT device.name, device.description, device.specialloadinformation, typemodel.name as model, typedeviceprotocol.name as protocol FROM device, typemodel, typeclass, typedeviceprotocol WHERE device.tkmodel = typemodel.enum AND device.tkclass = typeclass.enum AND typeclass.name = 'Phone' AND device.tkdeviceprotocol = typedeviceprotocol.enum AND (device.name like 'SEP%' OR device.name like 'ATA%' OR lower(device.name) like 'csf%' OR lower(device.name) like 'tct%' OR lower(device.name) like 'tab%' OR lower(device.name) like 'bot%') </sql> </ns:executeSQLQuery> </soapenv:Body> </soapenv:Envelope>
RIS Query
RIS Query URL: https://my-cucm-hostname:8443/realtimeservice2/services/RISService70
- The below examples only have two devices in the select items filter, but this in practice should be a list of up to 1000 records.
- With a 1000 records in your select filter, the response is likely to be less than 1000 devices, as some of the devices will likely NOT be registered.
Example RIS Query for SEP Devices
- Note the Max Returned Devices should be set to 1000 (the max allowed)
- The Class should be set for Phone or Any. Note if querying for ATA devices, this needs to be set to Gateway or Any
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:soap="http://schemas.cisco.com/ast/soap"> <soapenv:Header/> <soapenv:Body> <soap:selectCmDeviceExt> <soap:StateInfo></soap:StateInfo> <soap:CmSelectionCriteria> <soap:MaxReturnedDevices>1000</soap:MaxReturnedDevices> <soap:DeviceClass>Phone</soap:DeviceClass> <soap:Model>255</soap:Model> <soap:Status>Registered</soap:Status> <soap:NodeName></soap:NodeName> <soap:SelectBy>Name</soap:SelectBy> <soap:SelectItems> <soap:item><soap:Item>SEP0004F2E5BC8C</soap:Item></soap:item> <soap:item><soap:Item>SEP00059A3B7772</soap:Item></soap:item> </soap:SelectItems> <soap:Protocol>Any</soap:Protocol> <soap:DownloadStatus>Any</soap:DownloadStatus> </soap:CmSelectionCriteria> </soap:selectCmDeviceExt> </soapenv:Body> </soapenv:Envelope>
ATA Example
- The Device Class needs to be set to Gateway to return ATA devices.
- Or set the DeviceClass to Any and just rely on the Select Items filter to return the correct results
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:soap="http://schemas.cisco.com/ast/soap"> <soapenv:Header/> <soapenv:Body> <soap:selectCmDeviceExt> <soap:StateInfo></soap:StateInfo> <soap:CmSelectionCriteria> <soap:MaxReturnedDevices>1000</soap:MaxReturnedDevices> <soap:DeviceClass>Gateway</soap:DeviceClass> <soap:Model>255</soap:Model> <soap:Status>Registered</soap:Status> <soap:NodeName></soap:NodeName> <soap:SelectBy>Name</soap:SelectBy> <soap:SelectItems> <soap:item><soap:Item>ATA0C2724313A88</soap:Item></soap:item> <soap:item><soap:Item>ATA0C2724313B63</soap:Item></soap:item> </soap:SelectItems> <soap:Protocol>Any</soap:Protocol> <soap:DownloadStatus>Any</soap:DownloadStatus> </soap:CmSelectionCriteria> </soap:selectCmDeviceExt> </soapenv:Body> </soapenv:Envelope>
SQL Express Custom Inventory
AXL Query
Include Location and Device Pool
SELECT device.name, device.description, device.specialloadinformation, typemodel.name AS model, typedeviceprotocol.name AS protocol, devicepool.name AS devicepoolname, location.name AS locationname FROM device, typemodel, typeclass, typedeviceprotocol, devicepool, location WHERE device.tkmodel = typemodel.enum AND device.tkclass = typeclass.enum AND typeclass.name = 'Phone' AND device.tkdeviceprotocol = typedeviceprotocol.enum --AND (device.name like 'SEP%' OR device.name like 'ATA%') AND (device.name LIKE 'SEP64A0E7F68366') AND devicepool.pkid = device.fkdevicepool AND location.pkid = device.fklocation
CUCM Model IDs
admin:run sql select * from typemodel
Output on CUCM 12.5
enum name tkclass moniker showindevicedefaults defaultdtmfcapability tkrisc lass tksubclass tkphonecategory ===== ================================================== ======= ============================================= ==================== ===================== ====== ==== ========== =============== 15 EMCC Base Phone 249 MODEL_EMCC f 10 1 1 0 20 SCCP Phone 1 MODEL_SCCP_PHONE f 10 1 1 0 30 Analog Access 2 MODEL_VEGA t 10 2 4 0 40 Digital Access 2 MODEL_TITAN1 t 10 2 4 0 42 Digital Access+ 2 MODEL_TITAN2 f 10 2 6 0 43 Digital Access WS-X6608 2 MODEL_LENNON t 10 2 6 0 47 Analog Access WS-X6624 2 MODEL_ELVIS t 10 2 5 0 50 Conference Bridge 4 MODEL_CONF_BRIDGE t 10 6 8 0 51 Conference Bridge WS-X6608 4 MODEL_YOKO_CONF_BRIDGE t 10 6 9 0 62 H.323 Gateway 2 MODEL_H323_GATEWAY f 10 3 7 0 70 Music On Hold 12 MODEL_MUSIC_ON_HOLD f 10 6 14 0 71 Device Pilot 14 MODEL_DEVICE_PILOT f 0 0 15 0 73 CTI Route Point 10 MODEL_CTI_ROUTE_POINT f 0 4 16 0 80 Voice Mail Port 8 MODEL_UONE f 10 5 17 0 90 Route List 7 MODEL_ROUTE_LIST f 0 7 18 0 100 Load Simulator 13 MODEL_LOAD_SIMULATOR t 0 0 19 0 110 Media Termination Point 5 MODEL_MTP t 0 6 20 0 111 Media Termination Point Hardware 5 MODEL_YOKO_MTP t 0 6 21 0 120 MGCP Station 2 MODEL_MGCP_STATION t 10 2 5 0 121 MGCP Trunk 2 MODEL_MGCP_TRUNK t 10 2 6 0 122 GateKeeper 15 MODEL_GATEKEEPER f 0 3 25 0 125 Trunk 18 MODEL_TRUNK f 10 3 26 0 126 Tone Announcement Player 19 MODEL_ANN f 0 6 28 0 254 Unknown MGCP Gateway 2 MODEL_UNKNOWN_MGCP_GATEWAY f 0 2 4 0 255 Unknown 255 MODEL_UNKNOWN f 0 0 29 0 52 Cisco IOS Conference Bridge (HDV2) 4 MODEL_DIXIELAND_CFB t 10 6 10 0 53 Cisco Conference Bridge (WS-SVC-CMM) 4 MODEL_SUMMIT_CFB t 10 6 11 0 83 Cisco IOS Software Media Termination Point (HDV2) 5 MODEL_DIXIELAND_SW_MTP t 0 6 22 0 84 Cisco Media Server (WS-SVC-CMM-MS) 4 MODEL_SUMMIT_APP_CFB t 0 6 12 0 112 Cisco IOS Media Termination Point (HDV2) 5 MODEL_DIXIELAND_MTP t 0 6 23 0 113 Cisco Media Termination Point (WS-SVC-CMM) 5 MODEL_SUMMIT_MTP t 0 6 24 0 131 SIP Trunk 18 MODEL_SIP_TRUNK f 10 8 27 0 132 SIP Gateway 2 MODEL_SIP_GATEWAY f 10 8 4 0 133 WSM Trunk 18 MODEL_WSM_TRUNK f 10 8 27 0 85 Cisco Video Conference Bridge (IPVC-35xx) 4 MODEL_FLINT_CONF_BRIDGE t 10 6 13 0 522 BlackBerry MVS VoWifi 1 MODEL_BLACKBERRY_MVS_VOWIFI f 10 1 1 0 640 Usage Profile 255 MODEL_USAGE_PROFILE f 10 0 29 0 598 Ascom IP-DECT Device 1 MODEL_ASCOM_IP_DECT_DEVICE f 10 1 1 0 599 Cisco TelePresence Exchange System 4 MODEL_CISCO_TELEPRESENCE_EXCHANGE_SYSTEM f 10 6 33 0 36041 Cisco TelePresence Conductor 4 MODEL_CISCO_TELEPRESENCE_CONDUCTOR f 10 6 33 0 36219 Interactive Voice Response 301 MODEL_IVR f 0 6 28 0 36250 Cisco Meeting Server 4 MODEL_CISCO_MEETING_SERVER f 10 6 33 0 61 H.323 Phone 1 MODEL_H323_PHONE t 10 3 3 0 72 CTI Port 1 MODEL_CTI_PORT f 10 4 2 0 134 Remote Destination Profile 20 MODEL_REMOTE_DESTINATION f 10 0 1 2 30027 Analog Phone 1 MODEL_ANALOG_PHONE t 10 2 1 0 30028 ISDN BRI Phone 1 MODEL_ISDN_BRI_PHONE t 10 2 1 0 36298 SIP Station 1 MODEL_SIP_STATION t 10 2 1 0 2 Cisco 12 SP+ 1 MODEL_12SPP t 10 1 1 0 3 Cisco 12 SP 1 MODEL_12SP t 10 1 1 0 4 Cisco 12 S 1 MODEL_12S t 10 1 1 0 1 Cisco 30 SP+ 1 MODEL_30SPP t 10 1 1 0 5 Cisco 30 VIP 1 MODEL_30VIP t 10 1 1 0 9 Cisco 7935 1 MODEL_IP_CONFERENCE_PHONE t 10 1 1 0 6 Cisco 7910 1 MODEL_TELECASTER_BID t 10 1 1 0 7 Cisco 7960 1 MODEL_TELECASTER_MGR t 10 1 1 0 8 Cisco 7940 1 MODEL_TELECASTER_BUSINESS t 10 1 1 0 10 Cisco VGC Phone 1 MODEL_VGC_PHONE t 10 2 1 0 11 Cisco VGC Virtual Phone 1 MODEL_VGC_BOX_PHONE t 10 2 1 0 48 VGC Gateway 2 MODEL_CHALICE f 0 2 4 0 12 Cisco ATA 186 1 MODEL_ATA_186 t 10 2 1 0 124 7914 14-Button Line Expansion Module 16 MODEL_14_BUTTON_SIDECAR t 0 0 1 0 336 Third-party SIP Device (Basic) 1 MODEL_THIRD_PARTY_SIP_DEVICE_BASIC f 10 1 1 0 374 Third-party SIP Device (Advanced) 1 MODEL_THIRD_PARTY_SIP_DEVICE_ADVANCED f 10 1 1 0 115 Cisco 7941 1 MODEL_CISCO_7941 t 10 1 1 0 119 Cisco 7971 1 MODEL_CISCO_7971 t 10 1 1 0 20000 Cisco 7905 1 MODEL_CISCO_IP_PHONE_7905 t 10 1 1 0 302 Cisco 7985 1 MODEL_CISCO_7989 t 10 1 1 0 307 Cisco 7911 1 MODEL_CISCO_7911 t 10 1 1 0 308 Cisco 7961G-GE 1 MODEL_CISCO_7961G_GE t 10 1 1 0 309 Cisco 7941G-GE 1 MODEL_CISCO_7941G_GE t 10 1 1 0 335 Motorola CN622 1 MODEL_MOTOROLA_CN622 t 10 1 1 0 348 Cisco 7931 1 MODEL_7931 t 10 1 1 0 358 Cisco Unified Personal Communicator 1 MODEL_CISCO_UNIFIED_COMMUNICATOR t 10 1 1 1 365 Cisco 7921 1 MODEL_CP7921 t 10 1 1 0 369 Cisco 7906 1 MODEL_CISCO_7906 t 10 1 1 0 375 Cisco TelePresence 1 MODEL_TEN_BEARS f 10 1 1 0 376 Nokia S60 1 MODEL_NOKIA_E_SERIES f 10 1 1 1 30002 Cisco 7920 1 MODEL_7920 t 10 1 1 0 30006 Cisco 7970 1 MODEL_CISCO_7970 t 10 1 1 0 30007 Cisco 7912 1 MODEL_CISCO_7912 t 10 1 1 0 30008 Cisco 7902 1 MODEL_CISCO_7902 t 10 1 1 0 30016 Cisco IP Communicator 1 MODEL_CISCO_SOFTPHONE_SE_M t 10 1 1 1 30018 Cisco 7961 1 MODEL_CISCO_7961 t 10 1 1 0 30019 Cisco 7936 1 MODEL_CISCO_7936 t 10 1 1 0 30032 SCCP gateway virtual phone 17 MODEL_SCCP_GATEWAY_VIRTUAL_PHONE t 10 2 1 0 30035 IP-STE 1 MODEL_IP_STE t 10 1 1 0 404 Cisco 7962 1 MODEL_CISCO_7962 t 10 1 1 0 412 Cisco 3951 1 MODEL_CISCO_3951 t 10 1 1 0 431 Cisco 7937 1 MODEL_CISCO_7937 t 10 1 1 0 434 Cisco 7942 1 MODEL_CISCO_7942 t 10 1 1 0 435 Cisco 7945 1 MODEL_CISCO_7945 t 10 1 1 0 436 Cisco 7965 1 MODEL_CISCO_7965 t 10 1 1 0 437 Cisco 7975 1 MODEL_CISCO_7975 t 10 1 1 0 446 Cisco 3911 1 MODEL_CISCO_3911 t 10 1 1 0 550 Cisco ATA 187 1 MODEL_CISCO_ATA_187 t 10 2 1 0 631 Third-party AS-SIP Endpoint 1 MODEL_THIRD_PARTY_AS_SIP_ENDPOINT t 10 1 1 0 36049 BEKEM 36-Button Line Expansion Module 16 MODEL_BEKEM f 0 0 1 0 36263 Cisco Collaboration Mobile Convergence 1 MODEL_COLLABORATION_MOBILE_CONVERGENCE t 10 1 1 0 86 Cisco IOS Heterogeneous Video Conference Bridge 4 MODEL_HETEROGENEOUS_CFB t 10 6 30 0 87 Cisco IOS Guaranteed Audio Video Conference Bridge 4 MODEL_GUARANTEED_AUDIO_CFB t 10 6 31 0 88 Cisco IOS Homogeneous Video Conference Bridge 4 MODEL_HOMOGENEOUS_CFB t 10 6 32 0 227 7915 12-Button Line Expansion Module 16 MODEL_7915_12_BUTTON_SIDECAR t 0 0 1 0 228 7915 24-Button Line Expansion Module 16 MODEL_7915_24_BUTTON_SIDECAR t 0 0 1 0 229 7916 12-Button Line Expansion Module 16 MODEL_7916_12_BUTTON_SIDECAR t 0 0 1 0 230 7916 24-Button Line Expansion Module 16 MODEL_7916_24_BUTTON_SIDECAR t 0 0 1 0 232 CKEM 36-Button Line Expansion Module 16 MODEL_CKEM_36_BUTTON f 0 0 1 0 468 Cisco Unified Mobile Communicator 1 MODEL_CISCO_UNIFIED_MOBILE_COMMUNICATOR t 10 1 1 0 478 Cisco TelePresence 1000 1 MODEL_CISCO_TELEPRESENCE_1000 t 10 1 1 0 479 Cisco TelePresence 3000 1 MODEL_CISCO_TELEPRESENCE_3000 t 10 1 1 0 480 Cisco TelePresence 3200 1 MODEL_CISCO_TELEPRESENCE_3200 t 10 1 1 0 481 Cisco TelePresence 500-37 1 MODEL_CISCO_TELEPRESENCE_500 t 10 1 1 0 484 Cisco 7925 1 MODEL_CISCO_7925 t 10 1 1 0 493 Cisco 9971 1 MODEL_Cisco_9971 t 10 1 1 0 495 Cisco 6921 1 MODEL_CISCO_6921 t 10 1 1 0 496 Cisco 6941 1 MODEL_CISCO_6941 t 10 1 1 0 497 Cisco 6961 1 MODEL_CISCO_6961 t 10 1 1 0 503 Cisco Unified Client Services Framework 1 MODEL_CLIENT_SERVICES_FRAMEWORK t 10 1 1 1 505 Cisco TelePresence 1300-65 1 MODEL_CISCO_TELEPRESENCE_1300 t 10 1 1 0 520 Cisco TelePresence 1100 1 MODEL_CISCO_TELEPRESENCE_1100 t 10 1 1 0 521 Transnova S3 1 MODEL_S3 t 10 1 1 0 537 Cisco 9951 1 MODEL_9951 t 10 1 1 0 540 Cisco 8961 1 MODEL_CISCO_8961 t 10 1 1 0 547 Cisco 6901 1 MODEL_CISCO_6901 t 10 1 1 0 548 Cisco 6911 1 MODEL_CISCO_6911 t 10 1 1 0 557 Cisco TelePresence 200 1 MODEL_CISCO_TELEPRESENCE_200 f 10 1 1 0 558 Cisco TelePresence 400 1 MODEL_CISCO_TELEPRESENCE_400 f 10 1 1 0 562 Cisco Dual Mode for iPhone 1 MODEL_TIN_CAN_TOUCH t 10 1 1 1 564 Cisco 6945 1 MODEL_CISCO_6945 t 10 1 1 0 575 Cisco Dual Mode for Android 1 MODEL_CISCO_DUAL_MODE_FOR_ANDROID t 10 1 1 1 577 Cisco 7926 1 MODEL_CISCO_7926 t 10 1 1 0 580 Cisco E20 1 MODEL_CISCO_E20 t 10 1 1 0 582 Generic Single Screen Room System 1 MODEL_GENERIC_SINGLE_SCREEN_ROOM_SYSTEM t 10 1 1 0 583 Generic Multiple Screen Room System 1 MODEL_GENERIC_MULTIPLE_SCREEN_ROOM_SYSTEM t 10 1 1 0 584 Cisco TelePresence EX90 1 MODEL_TANDBERG_EX90 t 10 1 1 0 585 Cisco 8945 1 MODEL_CISCO_8945 t 10 1 1 0 586 Cisco 8941 1 MODEL_CISCO_8941 t 10 1 1 0 588 Generic Desktop Video Endpoint 1 MODEL_GENERIC_DESKTOP_VIDEO_ENDPOINT t 10 1 1 1 590 Cisco TelePresence 500-32 1 MODEL_CISCO_TELEPRESENCE_500_32 t 10 1 1 0 591 Cisco TelePresence 1300-47 1 MODEL_CISCO_TELEPRESENCE_1300_47 t 10 1 1 0 592 Cisco 3905 1 MODEL_CP_3905 t 10 1 1 0 593 Cisco Cius 1 MODEL_CISCO_CIUS t 10 1 1 1 594 VKEM 36-Button Line Expansion Module 16 MODEL_VKEM_36_BUTTON f 0 0 1 0 596 Cisco TelePresence TX1310-65 1 MODEL_CISCO_TELEPRESENCE_1310_65 t 10 1 1 0 597 Cisco TelePresence MCU 4 MODEL_CISCO_TELEPRESENCE_MCU f 10 6 33 0 604 Cisco TelePresence EX60 1 MODEL_CISCO_TELEPRESENCE_EX60 t 10 1 1 0 606 Cisco TelePresence Codec C90 1 MODEL_CISCO_TELEPRESENCE_CODEC_C90 t 10 1 1 0 607 Cisco TelePresence Codec C60 1 MODEL_CISCO_TELEPRESENCE_CODEC_C60 t 10 1 1 0 608 Cisco TelePresence Codec C40 1 MODEL_CISCO_TELEPRESENCE_CODEC_C40 t 10 1 1 0 609 Cisco TelePresence Quick Set C20 1 MODEL_CISCO_TELEPRESENCE_QUICK_SET_C20 t 10 1 1 0 610 Cisco TelePresence Profile 42 (C20) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_42_C20 t 10 1 1 0 611 Cisco TelePresence Profile 42 (C60) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_42_C60 t 10 1 1 0 612 Cisco TelePresence Profile 52 (C40) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_52_C40 t 10 1 1 0 613 Cisco TelePresence Profile 52 (C60) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_52_C60 t 10 1 1 0 614 Cisco TelePresence Profile 52 Dual (C60) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_52_DUAL_C60 t 10 1 1 0 615 Cisco TelePresence Profile 65 (C60) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_65_C60 t 10 1 1 0 616 Cisco TelePresence Profile 65 Dual (C90) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_65_DUAL_C90 t 10 1 1 0 617 Cisco TelePresence MX200 1 MODEL_CISCO_TELEPRESENCE_PROFILE_EXPRESS_42 t 10 1 1 0 619 Cisco TelePresence TX9000 1 MODEL_CISCO_TELEPRESENCE_TX9000 t 10 1 1 0 620 Cisco TelePresence TX9200 1 MODEL_CISCO_TELEPRESENCE_TX9200 t 10 1 1 0 621 Cisco 7821 1 MODEL_CISCO_7821 t 10 1 1 0 622 Cisco 7841 1 MODEL_CISCO_7841 t 10 1 1 0 623 Cisco 7861 1 MODEL_CISCO_7861 t 10 1 1 0 626 Cisco TelePresence SX20 1 MODEL_ASTERIX t 10 1 1 0 627 Cisco TelePresence MX300 1 MODEL_VENETO t 10 1 1 0 628 IMS-integrated Mobile (Basic) 1 MODEL_IMS_CLIENT_BASIC t 10 1 1 1 632 Cisco Cius SP 1 MODEL_CISCO_CIUS_SP t 10 1 1 1 633 Cisco TelePresence Profile 42 (C40) 1 MODEL_CISCO_TELEPRESENCE_PROFILE_42_C40 t 10 1 1 0 634 Cisco VXC 6215 1 MODEL_CISCO_VIRTUAL_EXPERIENCE_CLIENT_VXC6215 t 10 1 1 0 642 Carrier-integrated Mobile 1 MODEL_CARRIER_INTEGRATED_MOBILE t 10 1 1 1 645 Universal Device Template 1 MODEL_UNIVERSAL_DEVICE_TEMPLATE f 10 0 1 2 647 Cisco DX650 1 MODEL_CISCO_ZYDECO t 10 1 1 0 648 Cisco Unified Communications for RTX 1 MODEL_CISCO_UNIFIED_COMMUNICATIONS_FOR_RTX t 10 1 1 0 652 Cisco Jabber for Tablet 1 MODEL_CISCO_JABBER_FOR_TABLET t 10 1 1 1 659 Cisco 8831 1 MODEL_CISCO_8831 t 10 1 1 0 681 Cisco ATA 190 1 MODEL_CISCO_ATA_190 t 10 2 1 0 682 Cisco TelePresence SX10 1 MODEL_CISCO_TELEPRESENCE_SX10 t 10 1 1 0 683 Cisco 8841 1 MODEL_CISCO_8841 t 10 1 1 0 684 Cisco 8851 1 MODEL_CISCO_8851 t 10 1 1 0 685 Cisco 8861 1 MODEL_CISCO_8861 t 10 1 1 0 688 Cisco TelePresence SX80 1 MODEL_CISCO_TELEPRESENCE_SX60 t 10 1 1 0 689 Cisco TelePresence MX200 G2 1 MODEL_CISCO_TELEPRESENCE_MX200_G2 t 10 1 1 0 690 Cisco TelePresence MX300 G2 1 MODEL_CISCO_TELEPRESENCE_MX300_G2 t 10 1 1 0 253 SPA8800 2 MODEL_SPA8800 f 0 2 4 0 36042 Cisco DX80 1 MODEL_IL_TEMPO t 10 1 1 0 36043 Cisco DX70 1 MODEL_CISCO_DX750 t 10 1 1 0 36207 Cisco TelePresence MX700 1 MODEL_CISCO_TELEPRESENCE_MX700 t 10 1 1 0 36208 Cisco TelePresence MX800 1 MODEL_CISCO_TELEPRESENCE_MX800 t 10 1 1 0 36210 Cisco TelePresence IX5000 1 MODEL_CISCO_TELEPRESENCE_IX5000 t 10 1 1 0 36213 Cisco 7811 1 MODEL_CISCO_7811 t 10 1 1 0 36216 Cisco 8821 1 MODEL_CISCO_8821 t 10 1 1 0 36217 Cisco 8811 1 MODEL_CISCO_8811 t 10 1 1 0 36224 Cisco 8845 1 MODEL_CISCO_8845 t 10 1 1 0 36225 Cisco 8865 1 MODEL_CISCO_8865 t 10 1 1 0 36227 Cisco TelePresence MX800 Dual 1 MODEL_CISCO_TELEPRESENCE_MX800_DUAL t 10 1 1 0 36232 Cisco 8851NR 1 MODEL_CISCO_8851NR t 10 1 1 0 36235 Cisco Spark Remote Device 1 MODEL_SPARK_REMOTE_DEVICE t 10 1 1 0 36239 Cisco Webex DX80 1 MODEL_CISCO_DX80_CE t 10 1 1 0 36241 Cisco TelePresence DX70 1 MODEL_CISCO_TELEPRESENCE_DX70 t 10 1 1 0 36248 Cisco 8865NR 1 MODEL_CISCO_8865NR t 10 1 1 0 36251 Cisco Webex Room Kit 1 MODEL_CISCO_SPARK_ROOM_KIT t 10 1 1 0 36254 Cisco Webex Room 55 1 MODEL_CISCO_SPARK_ROOM_55 t 10 1 1 0 36255 Cisco Webex Room Kit Plus 1 MODEL_CISCO_SPARK_ROOM_KIT_PLUS t 10 1 1 0 36257 CP-8800-Audio 28-Button Key Expansion Module 16 MODEL_8800_AUDIO_KEM f 0 0 1 0 36256 CP-8800-Video 28-Button Key Expansion Module 16 MODEL_8800_VIDEO_KEM f 0 0 1 0 36307 Cisco Webex Desk Pro 1 MODEL_CISCO_WEBEX_DESK_PRO t 10 1 1 0 635 CTI Remote Device 1 MODEL_CTI_REMOTE_DEVICE t 10 1 1 0 36312 Cisco Webex Room Phone 1 MODEL_CISCO_WEBEX_ROOM_PHONE t 10 1 1 0 36309 Cisco Webex Room 70 Panorama 1 MODEL_CISCO_ROOM_70_PANORAMA t 10 1 1 0 36306 Cisco Webex Board 85 1 MODEL_CISCO_WEBEX_BOARD_85 t 10 1 1 0 36265 Cisco Webex Room 70 Dual 1 MODEL_CISCO_SPARK_ROOM_70_DUAL t 10 1 1 0 36320 Cisco 840 1 MODEL_CISCO_840 t 10 1 1 0 36322 Cisco Webex Desk LE 1 MODEL_CISCO_WEBEX_DESK_LE t 10 1 1 0 36304 Cisco Webex Board 55 1 MODEL_CISCO_WEBEX_BOARD_55 t 10 1 1 0 36262 Cisco ATA 191 1 MODEL_CISCO_ATA_191 t 10 2 1 0 36297 Cisco Webex Room 70 Dual G2 1 MODEL_CISCO_WEBEX_ROOM_70_G2_DUAL t 10 1 1 0 36299 Cisco Webex Room Kit Mini 1 MODEL_CISCO_WEBEX_ROOM_KIT_MINI t 10 1 1 0 36305 Cisco Webex Board 70 1 MODEL_CISCO_WEBEX_BOARD_70 t 10 1 1 0 36292 Cisco Webex Room Kit Pro 1 MODEL_CISCO_SPARK_ROOM_KIT_PRO t 10 1 1 0 36319 Cisco 860 1 MODEL_CISCO_860 t 10 1 1 0 36247 Cisco 7832 1 MODEL_CISCO_7832 t 10 1 1 0 36308 Cisco Webex Room Panorama 1 MODEL_CISCO_ROOM_PANORAMA t 10 1 1 0 36296 Cisco Webex Room 70 Single G2 1 MODEL_CISCO_WEBEX_ROOM_70_G2_SINGLE t 10 1 1 0 36326 Cisco Webex Desk Mini 1 MODEL_CISCO_WEBEX_DESK_MINI t 10 1 1 0 36260 Cisco 8832NR 1 MODEL_CISCO_IP_PHONE_8832NR t 10 1 1 0 36258 Cisco 8832 1 MODEL_CISCO_IP_PHONE_8832 t 10 1 1 0 36302 Cisco Webex VDI Svc Framework 1 MODEL_CISCO_WEBEX_VDI_SVC_FRAMEWORK t 10 1 1 1 36327 Cisco Webex Desk Hub 1 MODEL_CISCO_WEBEX_DESK_HUB t 10 1 1 0 36324 Cisco Webex Desk 1 MODEL_CISCO_WEBEX_DESK t 10 1 1 0 36295 Cisco Webex Room 55 Dual 1 MODEL_CISCO_WEBEX_ROOM_55_DUAL t 10 1 1 0 36259 Cisco Webex Room 70 Single 1 MODEL_CISCO_SPARK_ROOM_70_SINGLE t 10 1 1 0
