Webex Calling
Supported Devices
Headsets
ANI / PAI
Webex Calling has a Dual identity support configuration at the SIP trunk level - which you can disable. By the default it is enabled as the configuration states the followins:
The Dual Identity Support setting impacts the handling of the From header and P-Asserted-Identity (PAI) header when sending an initial SIP INVITE to the trunk for an outbound call. When enabled, the From and PAI headers are treated independently and may differ. When disabled, the PAI header is set to the same value as the From header. Please refer to the documentation for more details.
However when this is set - and you make an outbound call on WxCC - the PAI header is set to the default ANI of the Tenant, while the FROM header is set to the Outdial ANI.
The CUBE will then remap the PAI header to be the From header. And the PAI header is what the caller seeing as the calling number.
i.e. if you look at the following two headers in the SIP invite they contain different numbers. The default Tenant ANI is set in the PAI header.
.. From:"Entry Point - Global - Not In Servic"<sip:[email protected];user=phone>;tag=226606826-1684842712708- .. P-Asserted-Identity:"eirsupport1"<sip:[email protected];user=phone> ..
by disabling the Dual Identity Support option on Webex Calling, the From and PAI header are both set to the ANI as configured in the Outdial ANI
This setting is found on the Webex Control Hub Webex Calling Trunk Setting:
Calling → Call Routing → Trunk → <the InUse trunk> → Manage
Client Tips
- Settings → General → Landing Screen → Calling
- Settings → Calling → Incoming Calls → Uncheck 'Answer calls with my video on'
- Settings → Calling → Call window settings → 'When using this computer for calls' → Auto-minimise calls
Enroll-Cisco-IOS-managed-gateways-to-Webex-Cloud
Voicemail setup - Location
Even if you enable and configure a user successfully for voicemail on Webex Calling, it will not work until the voicemail phone number is configured in the relevant location.
Go to Location - > Calling → Calling Features Setting → Voice Portal And then configure the extension for voicemail (I typically use 8000 as per below).
Bulk manage User Calling Data
e.g. bulk configure user Webex Calling settings. Reference: https://help.webex.com/en-us/article/ijda3o/Manage-user-calling-data

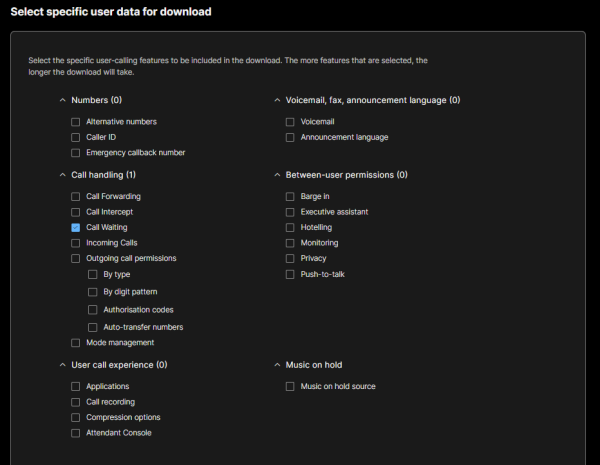

Example of what you can export (and then edit and upload).
Webex Calling Registered Trunks
When you setup a SIP trunk with Wx Calling - it gives you details such as below (as well as username / password).
Trunk type: Registration based Device: Cisco CUBE Local Gateway Registrar Domain: eun10.bcld.webex.com Trunk Group OTG/DTG: vcube-test_12345678_lgu Line/Port: [email protected] Outbound Proxy Address: ams03.sipconnect-eun.bcld.webex.com
The Local gateway uses a SIP SRV record using the Outbound proxy address to find on where to connect. Below is an example on doing a TCP Secure SIP SRV record direct from the windows command console for the ams03.sipconnect-eun.bcld.webex.com
C:\Users\user1>nslookup -type=SRV _sips._tcp.ams03.sipconnect-eun.bcld.webex.com
Server: dns.mydomain.com
Address: 10.100.1.100
Non-authoritative answer:
_sips._tcp.ams03.sipconnect-eun.bcld.webex.com SRV service location:
priority = 500
weight = 50
port = 8934
svr hostname = sse9.public.wamswxc-p-2.prod.infra.webex.com
_sips._tcp.ams03.sipconnect-eun.bcld.webex.com SRV service location:
priority = 10
weight = 50
port = 8934
svr hostname = sse6.public.wfrawxc-p-3.prod.infra.webex.com
We can then find out details on the certs used by these endpoints using openssl
openssl s_client -connect sse9.public.wamswxc-p-2.prod.infra.webex.com:8934 -showcerts
Which will return the below:
Connecting to 170.72.29.162
CONNECTED(00000204)
depth=2 C=US, O=IdenTrust, CN=IdenTrust Commercial Root CA 1
verify error:num=19:self-signed certificate in certificate chain
verify return:1
depth=2 C=US, O=IdenTrust, CN=IdenTrust Commercial Root CA 1
verify return:1
depth=1 C=US, O=IdenTrust, OU=HydrantID Trusted Certificate Service, CN=HydrantID Server CA O1
verify return:1
depth=0 C=US, ST=California, L=San Jose, O=Cisco Systems Inc., CN=sse0.public.wamswxc-p-2.prod.infra.webex.com
verify return:1
---
Certificate chain
0 s:C=US, ST=California, L=San Jose, O=Cisco Systems Inc., CN=sse0.public.wamswxc-p-2.prod.infra.webex.com
i:C=US, O=IdenTrust, OU=HydrantID Trusted Certificate Service, CN=HydrantID Server CA O1
a:PKEY: RSA, 2048 (bit); sigalg: sha256WithRSAEncryption
v:NotBefore: Apr 21 20:21:47 2026 GMT; NotAfter: Nov 6 20:20:47 2026 GMT
-----BEGIN CERTIFICATE-----
MIIM8TCCC9mgAwIBAgIQQAGdsbTD150rr5Fl70cs3DANBgkqhkiG9w0BAQsFADBy
MQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MS4wLAYDVQQLEyVIeWRy
YW50SUQgVHJ1c3RlZCBDZXJ0aWZpY2F0ZSBTZXJ2aWNlMR8wHQYDVQQDExZIeWRy
YW50SUQgU2VydmVyIENBIE8xMB4XDTI2MDQyMTIwMjE0N1oXDTI2MTEwNjIwMjA0
N1owgYkxCzAJBgNVBAYTAlVTMRMwEQYDVQQIEwpDYWxpZm9ybmlhMREwDwYDVQQH
EwhTYW4gSm9zZTEbMBkGA1UEChMSQ2lzY28gU3lzdGVtcyBJbmMuMTUwMwYDVQQD
Eyxzc2UwLnB1YmxpYy53YW1zd3hjLXAtMi5wcm9kLmluZnJhLndlYmV4LmNvbTCC
ASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAMXniCboakbfwBkOhRaz+2iM
szwiTsuxqKaDQ3RfMO7JSQn+P3p157dQocejKVZWZci+hRS0nIgccPyuHOpUtDCr
wcgUTKDDD99ihnKVp0VXoFDVRJ+79bwlvh97j91aNTddH0cQ/qbp0+nlp/Zqtx7y
MqEdOeYJp/wXG24GnhV39n7wZFogBzK8rp0D7tN9HZALwT+IzLhix4Vp104Y1gqK
0TF4vBL+3whf3kSh6NeBv05pEw6YpQWY1mhCVw3hWYIx6DfMLaLezDrKIR3Jyohk
wBfIqFh37NsafHqnRmkdN2LMRGY2ioMqnCxvUYVnBK0IugzAw8OgiF6A0pupUFMC
AwEAAaOCCWkwggllMA4GA1UdDwEB/wQEAwIFoDCBhQYIKwYBBQUHAQEEeTB3MDAG
CCsGAQUFBzABhiRodHRwOi8vY29tbWVyY2lhbC5vY3NwLmlkZW50cnVzdC5jb20w
QwYIKwYBBQUHMAKGN2h0dHA6Ly92YWxpZGF0aW9uLmlkZW50cnVzdC5jb20vY2Vy
dHMvaHlkcmFudGlkY2FPMS5wN2MwHwYDVR0jBBgwFoAUibibtp7t+7DGvQ3sZ048
o5KdLfkwIQYDVR0gBBowGDAIBgZngQwBAgIwDAYKYIZIAYb5LwAGAzBGBgNVHR8E
PzA9MDugOaA3hjVodHRwOi8vdmFsaWRhdGlvbi5pZGVudHJ1c3QuY29tL2NybC9o
eWRyYW50aWRjYW8xLmNybDCCBn0GA1UdEQSCBnQwggZwghJ6LWEuY3RpbS5jaXNj
by5jb22CH2R4YjAxLnNpcGNvbm5lY3QuYmNsZC53ZWJleC5jb22CH3JzYTAxLnNp
cGNvbm5lY3QuYmNsZC53ZWJleC5jb22CI2FtczAxLnNpcGNvbm5lY3QtZXVuLmJj
bGQud2ViZXguY29tgiNhbXMwMi5zaXBjb25uZWN0LWV1bi5iY2xkLndlYmV4LmNv
bYIjYW1zMDMuc2lwY29ubmVjdC1ldW4uYmNsZC53ZWJleC5jb22CI2FtczA0LnNp
cGNvbm5lY3QtZXVuLmJjbGQud2ViZXguY29tgiNhbXMwNS5zaXBjb25uZWN0LWV1
bi5iY2xkLndlYmV4LmNvbYIjYW1zMDYuc2lwY29ubmVjdC1ldW4uYmNsZC53ZWJl
eC5jb22CI2FtczA3LnNpcGNvbm5lY3QtZXVuLmJjbGQud2ViZXguY29tgiNhbXMw
OC5zaXBjb25uZWN0LWV1bi5iY2xkLndlYmV4LmNvbYIjYW1zMDkuc2lwY29ubmVj
dC1ldW4uYmNsZC53ZWJleC5jb22CI2FtczEwLnNpcGNvbm5lY3QtZXVuLmJjbGQu
d2ViZXguY29tgiNhbXMxMS5zaXBjb25uZWN0LWV1bi5iY2xkLndlYmV4LmNvbYIj
YW1zMTIuc2lwY29ubmVjdC1ldW4uYmNsZC53ZWJleC5jb22CLHNzZTAucHVibGlj
LndhbXN3eGMtcC0yLnByb2QuaW5mcmEud2ViZXguY29tgixzc2UxLnB1YmxpYy53
YW1zd3hjLXAtMi5wcm9kLmluZnJhLndlYmV4LmNvbYIsc3NlMi5wdWJsaWMud2Ft
c3d4Yy1wLTIucHJvZC5pbmZyYS53ZWJleC5jb22CLHNzZTMucHVibGljLndhbXN3
eGMtcC0yLnByb2QuaW5mcmEud2ViZXguY29tgixzc2U0LnB1YmxpYy53YW1zd3hj
LXAtMi5wcm9kLmluZnJhLndlYmV4LmNvbYIsc3NlNS5wdWJsaWMud2Ftc3d4Yy1w
LTIucHJvZC5pbmZyYS53ZWJleC5jb22CLHNzZTYucHVibGljLndhbXN3eGMtcC0y
LnByb2QuaW5mcmEud2ViZXguY29tgixzc2U3LnB1YmxpYy53YW1zd3hjLXAtMi5w
cm9kLmluZnJhLndlYmV4LmNvbYIsc3NlOC5wdWJsaWMud2Ftc3d4Yy1wLTIucHJv
ZC5pbmZyYS53ZWJleC5jb22CLHNzZTkucHVibGljLndhbXN3eGMtcC0yLnByb2Qu
aW5mcmEud2ViZXguY29tgi1zc2UxMC5wdWJsaWMud2Ftc3d4Yy1wLTIucHJvZC5p
bmZyYS53ZWJleC5jb22CLXNzZTExLnB1YmxpYy53YW1zd3hjLXAtMi5wcm9kLmlu
ZnJhLndlYmV4LmNvbYItc3NlMTIucHVibGljLndhbXN3eGMtcC0yLnByb2QuaW5m
cmEud2ViZXguY29tgi1zc2UxMy5wdWJsaWMud2Ftc3d4Yy1wLTIucHJvZC5pbmZy
YS53ZWJleC5jb22CLXNzZTE0LnB1YmxpYy53YW1zd3hjLXAtMi5wcm9kLmluZnJh
LndlYmV4LmNvbYItc3NlMTUucHVibGljLndhbXN3eGMtcC0yLnByb2QuaW5mcmEu
d2ViZXguY29tgi1zc2UxNi5wdWJsaWMud2Ftc3d4Yy1wLTIucHJvZC5pbmZyYS53
ZWJleC5jb22CLXNzZTE3LnB1YmxpYy53YW1zd3hjLXAtMi5wcm9kLmluZnJhLndl
YmV4LmNvbYItc3NlMTgucHVibGljLndhbXN3eGMtcC0yLnByb2QuaW5mcmEud2Vi
ZXguY29tgi1zc2UxOS5wdWJsaWMud2Ftc3d4Yy1wLTIucHJvZC5pbmZyYS53ZWJl
eC5jb22CLXNzZTIwLnB1YmxpYy53YW1zd3hjLXAtMi5wcm9kLmluZnJhLndlYmV4
LmNvbYItc3NlMjEucHVibGljLndhbXN3eGMtcC0yLnByb2QuaW5mcmEud2ViZXgu
Y29tgi1zc2UyMi5wdWJsaWMud2Ftc3d4Yy1wLTIucHJvZC5pbmZyYS53ZWJleC5j
b22CLXNzZTIzLnB1YmxpYy53YW1zd3hjLXAtMi5wcm9kLmluZnJhLndlYmV4LmNv
bTAdBgNVHQ4EFgQU8iJ0wuUafOL++E6GG7mTxwFBD40wHQYDVR0lBBYwFAYIKwYB
BQUHAwEGCCsGAQUFBwMCMIIBfgYKKwYBBAHWeQIEAgSCAW4EggFqAWgAdgDXbX0Q
0af1d8LH6V/XAL/5gskzWmXh0LMBcxfAyMVpdwAAAZ2xtMWaAAAEAwBHMEUCIQC0
V4xRLquPA9Q0ySUl63WRXfzQuPmynBYPs4LUp9pIFwIgCnQKNI2sRPLuShCBMhv3
KYcsln8qa5o2HmRN4DnnrbkAdgDYCVU7lE96/8gWGW+UT4WrsPj8XodVJg8V0S5y
u0VLFAAAAZ2xtMfrAAAEAwBHMEUCIH9TrcIkvM0v34lkgwlPWGMeuMFFuRxIHgKc
67PF0RrZAiEA97oBjvDZSSF9dedmMpmVLx41J26ReCILNDSLonjiVIUAdgCUTkOH
+uzB74HzGSQmqBhlAcfTXzgCAT9yZ31VNy4Z2AAAAZ2xtMTfAAAEAwBHMEUCIESM
xAoRZ1fdovpRqzNkjVOoXQxh4AzUfXGVWYZJQKRcAiEA/xeVqxFlIMF3QpeziTun
F5nN6+3C77XCjLuNE7WD4I8wDQYJKoZIhvcNAQELBQADggEBADLlMPbkvJUbISAN
nv6AQLQML/VpIkyKNQTM5JROWJeVy+HqxqDwltZ2f99tXIliT79/Ck1OyvDPceFT
dG5rBBJ4lLDgUzviW5XV3xfbae+6OjGmplnOhmQjPxi5R+48WuqsTCmlwwcfv8vx
017zNtluGkh3WAy0lZWo4lGLvCtxr2M2ov02Zc8qeo5iBL+AcnTaNi9WTJe7vuXx
iE/ifxMiCx2haulhHtHhCgfR/hxiDIz/MchiYP5Vfcmf+StV+w8NDFOdMR0yMImP
uQM4OSD0rMV8v8dfzjfsECxsyP8uW1S12kbrHqe93pXI31CetWSF24bCPWsHgy30
+iv0e5Q=
-----END CERTIFICATE-----
1 s:C=US, O=IdenTrust, OU=HydrantID Trusted Certificate Service, CN=HydrantID Server CA O1
i:C=US, O=IdenTrust, CN=IdenTrust Commercial Root CA 1
a:PKEY: RSA, 2048 (bit); sigalg: sha256WithRSAEncryption
v:NotBefore: Dec 12 16:56:15 2019 GMT; NotAfter: Dec 12 16:56:15 2029 GMT
-----BEGIN CERTIFICATE-----
MIIG1jCCBL6gAwIBAgIQQAFu+wogXPrr4Y9x1zq7eDANBgkqhkiG9w0BAQsFADBK
MQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MScwJQYDVQQDEx5JZGVu
VHJ1c3QgQ29tbWVyY2lhbCBSb290IENBIDEwHhcNMTkxMjEyMTY1NjE1WhcNMjkx
MjEyMTY1NjE1WjByMQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MS4w
LAYDVQQLEyVIeWRyYW50SUQgVHJ1c3RlZCBDZXJ0aWZpY2F0ZSBTZXJ2aWNlMR8w
HQYDVQQDExZIeWRyYW50SUQgU2VydmVyIENBIE8xMIIBIjANBgkqhkiG9w0BAQEF
AAOCAQ8AMIIBCgKCAQEA6huZbDVWMGj7XbFZQWl+uhh0SIeWhO8rl79MV4+7ZSj2
Lxos5e8za0H1JVVzTNPaup2Go438C5zeaqaGtyUshV8D0xwUiWyamspTao7PjjuC
h81+tp9z76rp1irjNMh5o/zeJ0h3Kag5zQG9sfI7J7ihLnTFbArjNZIRaZnszOnu
Ga18jh/9epnGmEYL5BV119LNVo5luWshvG/kifk9mHjtkA8LzVdsOkvCrmHBpzpD
o4qyPk2lDypq04IU48JUqhFrG4kvlPz+VO7sse0uxYXj81FdNb2qoJnvAjqV+Zj4
Nii8PIcuNGqghDjzrs2PW/gEhkaWDikhhSY7DjOLiQIDAQABo4ICjjCCAoowEgYD
VR0TAQH/BAgwBgEB/wIBADAOBgNVHQ8BAf8EBAMCAYYwgYkGCCsGAQUFBwEBBH0w
ezAwBggrBgEFBQcwAYYkaHR0cDovL2NvbW1lcmNpYWwub2NzcC5pZGVudHJ1c3Qu
Y29tMEcGCCsGAQUFBzAChjtodHRwOi8vdmFsaWRhdGlvbi5pZGVudHJ1c3QuY29t
L3Jvb3RzL2NvbW1lcmNpYWxyb290Y2ExLnA3YzAfBgNVHSMEGDAWgBTtRBnA0/AG
i+6ke75C5yZUyI42djCCASsGA1UdIASCASIwggEeMIIBGgYEVR0gADCCARAwSgYI
KwYBBQUHAgEWPmh0dHBzOi8vc2VjdXJlLmlkZW50cnVzdC5jb20vY2VydGlmaWNh
dGVzL3BvbGljeS90cy9pbmRleC5odG1sMIHBBggrBgEFBQcCAjCBtAyBsVRoaXMg
VHJ1c3RJRCBTZXJ2ZXIgQ2VydGlmaWNhdGUgaGFzIGJlZW4gaXNzdWVkIGluIGFj
Y29yZGFuY2Ugd2l0aCBJZGVuVHJ1c3QncyBUcnVzdElEIENlcnRpZmljYXRlIFBv
bGljeSBmb3VuZCBhdCBodHRwczovL3NlY3VyZS5pZGVudHJ1c3QuY29tL2NlcnRp
ZmljYXRlcy9wb2xpY3kvdHMvaW5kZXguaHRtbDBKBgNVHR8EQzBBMD+gPaA7hjlo
dHRwOi8vdmFsaWRhdGlvbi5pZGVudHJ1c3QuY29tL2NybC9jb21tZXJjaWFscm9v
dGNhMS5jcmwwHQYDVR0OBBYEFIm4m7ae7fuwxr0N7GdOPKOSnS35MB0GA1UdJQQW
MBQGCCsGAQUFBwMBBggrBgEFBQcDAjANBgkqhkiG9w0BAQsFAAOCAgEAdMrY9RYw
NyVgzeOqqcbdIxy5gHRQFbh3RTuIi0fsnbEh3v7BN+I3zmXJq71gyLOzG9wvqCul
XtLQNAZnrlSacXichYDV5zdcnbBrFH/CXt47oW4L+9yD5LPMKaSU5DP9DEu88ws+
QAjzL6/q+hP+CLQh0/vr62HoEGS1+NyLfnJIN0RVcVDxBAwVqNF8MU5An98ZmHj4
XaSPA6s2s+3794ULe6r2TzVXiLtun0JJ0kBZL3Mx0plhONvhq7jCsa6bYCF71DNs
7VhrNUh+BZNdQvLqAdfQJtFY5EiWpExhiPC/ZdtVYN5RfrOMCWgBbjnl5e2n5WYa
7LM4HR+z7U+6JCBqaRjlbaNNLed/qg+OMdpBJe16qJJT9E5Uzdc4PsUbL2a+9IUb
uxx8nmrbQswe8p4yvcy9RLje07a4Y09otZ/Aai3Gijup67jTCez1hd7VYIAuznqP
os6SLponh2vVcHu9vQoT18OCL9janJ2Ilh3lJHUxv1kHD9IxZNpn0j/QPzGFv2Ez
UXZVAECEQLS80qWh6zCXhXl6dVAeM84sSysIiY4Kv8oaXEF5Atyg0LcUuB6Iwgg3
K/QUY3QusnjrDcgGRyoWn0Zt53meMCi3C0hoQ+FrQ3zF4/7wtxKnGGBH5hKBU23M
2XrKEZL5RmGZidpWP6ZBbvEs2MqSD7zcFvY=
-----END CERTIFICATE-----
2 s:C=US, O=IdenTrust, CN=IdenTrust Commercial Root CA 1
i:C=US, O=IdenTrust, CN=IdenTrust Commercial Root CA 1
a:PKEY: RSA, 4096 (bit); sigalg: sha256WithRSAEncryption
v:NotBefore: Jan 16 18:12:23 2014 GMT; NotAfter: Jan 16 18:12:23 2034 GMT
-----BEGIN CERTIFICATE-----
MIIFYDCCA0igAwIBAgIQCgFCgAAAAUUjyES1AAAAAjANBgkqhkiG9w0BAQsFADBK
MQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MScwJQYDVQQDEx5JZGVu
VHJ1c3QgQ29tbWVyY2lhbCBSb290IENBIDEwHhcNMTQwMTE2MTgxMjIzWhcNMzQw
MTE2MTgxMjIzWjBKMQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MScw
JQYDVQQDEx5JZGVuVHJ1c3QgQ29tbWVyY2lhbCBSb290IENBIDEwggIiMA0GCSqG
SIb3DQEBAQUAA4ICDwAwggIKAoICAQCnUBneP5k91DNG8W9RYYKyqU+PZ4ldhNlT
3Qwo2dfw/66VQ3KZ+bVdfIrBQuExUHTRgQ18zZshq0PirK1ehm7zCYofWjK9ouuU
+ehcCuz/mNKvcbO0U59Oh++SvL3sTzIwiEsXXlfEU8L2ApeN2WIrvyQfYo3fw7gp
S0l4PJNgiCL8mdo2yMKi1CxUAGc1bnO/AljwpN3lsKImesrgNqUZFvX9t++uP0D1
bVoE/c40yiTcdCMbXTMTEl3EASX2MN0CXZ/g1Ue9tOsbobtJSdifWwLziuQkkORi
T0/Br4sOdBeo0XKIanoBScy0RnnGF7HamB4HWfp1IYVl3ZBWzvurpWCdxJ35UrCL
vYf5jysjCiN2O/cz4ckA82n5S6LgTrx+kzmEB/dEcH7+B1rlsazRGMzyNeVJSQjK
Vsk9+w8YfYs7wRPCTY/JTw436R+hDmrfYi7LNQZReSzIJTj0+kuniVyc0uMNOYZK
dHzVWYfCP04MXFL0PfdSgvHqo6z9STQaKPNBiDoT7uje/5kdX7rL6B7yuVBgwDHT
c+XvvqDtMwt0viAgxGds8AgDelWAf0ZOlqf0Hj7h9tgJ4TNkK2PXMl6f+cB7D3hv
l7yTmvmcEpB4eoCHFddydJxVdHixuuFucAS6T6C6aMN7/zHwcz09lCqxC0EOoP5N
iGVreTO01wIDAQABo0IwQDAOBgNVHQ8BAf8EBAMCAQYwDwYDVR0TAQH/BAUwAwEB
/zAdBgNVHQ4EFgQU7UQZwNPwBovupHu+QucmVMiONnYwDQYJKoZIhvcNAQELBQAD
ggIBAA2ukDL2pkt8RHYZYR4nKM1eVO8lvOMIkPkp165oCOGUAFjvLi5+U1KMtlwH
6oi6mYtQlNeCgN9hCQCTrQ0U5s7B8jeUeLBfnLOic7iPBZM4zY0+sLj7wM+x8uwt
LRvM7Kqas6pgghstO8OEPVeKlh6cdbjTMM1gCIOQ045U8U1mwF10A0Cj7oV+wh93
nAbowacYXVKV7cndJZ5t+qntozo00Fl72u1Q8zW/7esUTTHHYPTa8Yec4kjixsU3
+wYQ+nVZZjFHKdp2mhzpgq7vmrlR94gjmmmVYjzlVYA211QC//G5Xc7UI2/YRYRK
W2XviQzdFKcgyxilJbQN+QHwotL0AMh0jqEqSI5l2xPE4iUXfeu+h1sXIFRRk0pT
AwvsXcoz7WL9RccvW9xYoIA55vrX/hMUpu09lEpCdNTDd1lzzY9GvlU47/rokTLq
l1gEIt44w8y8bckzOmoKaT+gyOpyj4xjhiO9bTyWnpXgSUyqorkqG5w2gXjtw+hG
4iZZRHUe2XWJUc0QhJ1hYMtd+ZciTY6Y5uN/9lu7rs3KSoFrXgvzUeF0K+l+J6fZ
mUlO+KWA2yUPHGNiiskzZ2s8EIPGrd6ozRaOjfAHN3Gf8qv8QfXBi+wAN10J5U6A
7/qxXDgGpRtK4dw4LTzcqx+QGtVKnO7RcGzM7vRX+Bi6hG6H
-----END CERTIFICATE-----
---
Server certificate
subject=C=US, ST=California, L=San Jose, O=Cisco Systems Inc., CN=sse0.public.wamswxc-p-2.prod.infra.webex.com
issuer=C=US, O=IdenTrust, OU=HydrantID Trusted Certificate Service, CN=HydrantID Server CA O1
---
No client certificate CA names sent
Peer signing digest: SHA256
Peer signature type: rsa_pss_rsae_sha256
Peer Temp Key: X25519, 253 bits
---
SSL handshake has read 7021 bytes and written 1655 bytes
Verification error: self-signed certificate in certificate chain
---
New, TLSv1.3, Cipher is TLS_AES_256_GCM_SHA384
Protocol: TLSv1.3
Server public key is 2048 bit
This TLS version forbids renegotiation.
Compression: NONE
Expansion: NONE
No ALPN negotiated
Early data was not sent
Verify return code: 19 (self-signed certificate in certificate chain)
---
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
Protocol : TLSv1.3
Cipher : TLS_AES_256_GCM_SHA384
Session-ID: 0484E102B2766B8F40BF66C10F66B26788D2CE5C4C948714DFCCF306330CB6E7
Session-ID-ctx:
Resumption PSK: E832D1728B189D8C6F0D6510B01BA48FEC2BE13045F6164F235309FD4A6D1925335807E655C255A003077A581F80BD11
PSK identity: None
PSK identity hint: None
SRP username: None
TLS session ticket lifetime hint: 14400 (seconds)
TLS session ticket:
0000 - 60 e2 32 0f 41 b3 49 52-70 8f a3 23 a4 1d 2a 55 `.2.A.IRp..#..*U
0010 - 0f 42 4c 4e e4 82 b1 dc-29 74 83 4e b0 89 6c cb .BLN....)t.N..l.
0020 - 74 88 3b 85 95 7a 72 24-f3 4a f2 1c dd 34 42 c0 t.;..zr$.J...4B.
0030 - e4 c8 f4 e5 f6 7c 09 43-f9 d8 f5 af f4 1d 80 8b .....|.C........
0040 - 99 48 6e 7b cb a1 7d 17-4d 7e e4 e8 98 c9 7d fb .Hn{..}.M~....}.
0050 - 41 0e 62 6e 43 52 67 d4-13 99 19 ab 0a 32 9c ca A.bnCRg......2..
0060 - 0b ec 86 cb ed 76 33 d0-3c 2c 17 19 e2 f2 81 b2 .....v3.<,......
0070 - ed ed d3 b2 2e 10 cd 6a-35 60 a5 e7 df b3 df 84 .......j5`......
0080 - d1 24 4a 1c 8d a7 87 68-1f c8 c4 4a 36 8f 3d 67 .$J....h...J6.=g
0090 - b7 dd 6b ca 83 60 47 a6-68 78 17 af ec ea b3 ac ..k..`G.hx......
00a0 - e4 67 79 38 52 e3 e3 27-7d bc e5 02 fa 88 73 56 .gy8R..'}.....sV
00b0 - 71 17 c4 08 d1 31 92 00-85 fa ca 7b 82 01 31 df q....1.....{..1.
00c0 - 06 97 f8 b5 98 c2 8c ff-1d c9 80 e3 70 9f 1c 69 ............p..i
00d0 - 40 08 3b 3f a5 81 02 9a-5d 96 a8 53 8a 4b ff 72 @.;?....]..S.K.r
00e0 - d3 a9 97 e1 b5 da 10 b2-b8 c4 0e 79 16 c4 3c 48 ...........y..<H
00f0 - 03 79 d7 ae 56 ba 4e 5d-1b 98 cb f1 5d 89 84 84 .y..V.N]....]...
Start Time: 1779979538
Timeout : 7200 (sec)
Verify return code: 19 (self-signed certificate in certificate chain)
Extended master secret: no
Max Early Data: 0
---
read R BLOCK
---
Post-Handshake New Session Ticket arrived:
SSL-Session:
Protocol : TLSv1.3
Cipher : TLS_AES_256_GCM_SHA384
Session-ID: FD3C184AA4D5866A07B14E5FB824CE2BCD1EDAC58FA3B1ACAF5B28830E7A48ED
Session-ID-ctx:
Resumption PSK: 6F4FD627ADF745C7382856EB7A27727C3D3B439BF86218D1325DB3A96D9BEA29190E2E6B49BC25FC8DDE1AD6B39EAB9E
PSK identity: None
PSK identity hint: None
SRP username: None
TLS session ticket lifetime hint: 14400 (seconds)
TLS session ticket:
0000 - 60 e2 32 0f 41 b3 49 52-70 8f a3 23 a4 1d 2a 55 `.2.A.IRp..#..*U
0010 - e1 2d 06 d6 92 bf b1 5f-71 59 7e a5 19 40 e0 28 .-....._qY~..@.(
0020 - 15 59 2b 81 73 47 40 6c-db 08 4b 37 46 34 2f 3a [email protected]/:
0030 - ff 8e 89 a0 eb 7a 17 9d-b5 7d a4 61 61 f0 a9 89 .....z...}.aa...
0040 - f2 f7 d0 c1 3a 6d f3 65-42 10 d7 4f 2f 49 2d 76 ....:m.eB..O/I-v
0050 - 6b bc 96 00 50 97 cb a6-0f c7 2f 26 2e f0 a9 ac k...P...../&....
0060 - 3d b2 2b 3f 7e 77 ff 7c-3d df a4 e8 e2 a6 6d 2e =.+?~w.|=.....m.
0070 - a2 a2 28 b9 18 64 db 33-39 38 b6 be c4 d4 e3 5e ..(..d.398.....^
0080 - 60 d3 0e 43 c8 8e 8b 39-6f 76 1a bb 99 c5 4c 6d `..C...9ov....Lm
0090 - 2e 22 6b 00 a1 4b 67 19-ef c7 56 a5 b0 84 a0 33 ."k..Kg...V....3
00a0 - 6b 0f 5e ed fe bb e7 1b-55 ad 2d 0e c4 0b 1b 05 k.^.....U.-.....
00b0 - 66 9a b1 4c 2d 9d ec e8-87 d2 bc e5 af 15 95 c1 f..L-...........
00c0 - fc 7d 87 0f 54 75 dd d5-aa e0 5e 89 71 84 be 45 .}..Tu....^.q..E
00d0 - 61 1d 58 cb 43 7f 1b 29-c6 b5 a8 7d fe 41 9b 2a a.X.C..)...}.A.*
00e0 - 6a 1c cb 43 1f b7 3f 71-e0 cf 09 f6 85 af 82 ba j..C..?q........
00f0 - 50 9e b8 2c a8 80 bd 61-54 04 0e 02 74 8a 92 1c P..,...aT...t...
Start Time: 1779979538
Timeout : 7200 (sec)
Verify return code: 19 (self-signed certificate in certificate chain)
Extended master secret: no
Max Early Data: 0
---
read R BLOCK
Webex App - Enable Browser Developer Tools
- WebexWebApp_EnableDebug.reg
Windows Registry Editor Version 5.00 [HKEY_LOCAL_MACHINE\SOFTWARE\Cisco Spark Native] "EnableEmbeddedAppDebug"=dword:00000001
- WebexWebApp_DisableDebug.reg
Windows Registry Editor Version 5.00 [HKEY_LOCAL_MACHINE\SOFTWARE\Cisco Spark Native] "EnableEmbeddedAppDebug"=dword:00000000
